Footprint 1165×1050×990 mmSupporting Equipment

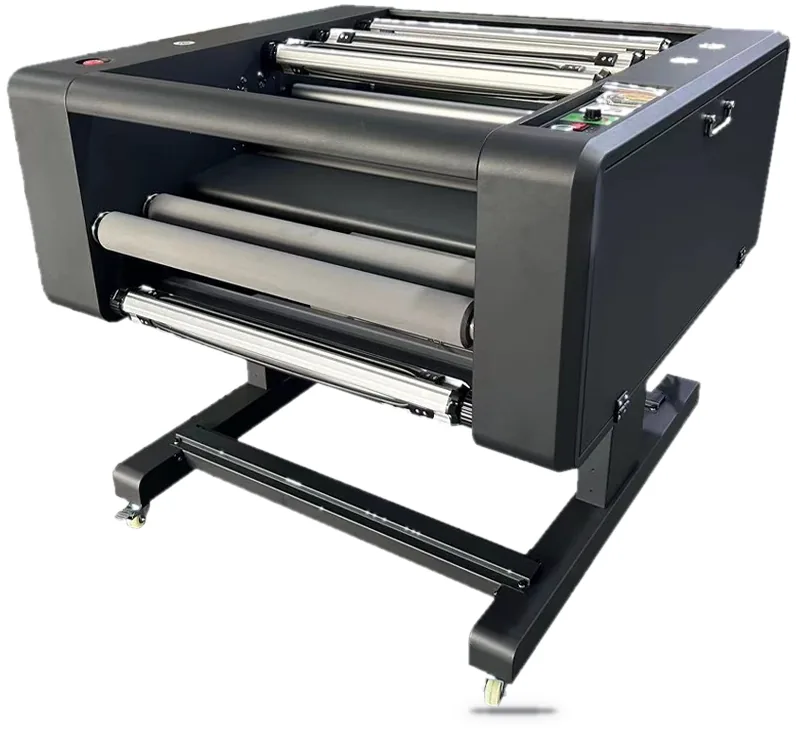

IM-LaminatorLaminating Machine
An automatic hot-stamping and laminating machine for premium packaging. It tears, laminates and re-rolls film in a single pass, foiling gift boxes and flat packaging with no plate making.
680mm
Max Lamination Width
0.1–3mm
Laminating Thickness
10m/min
Speed
<100°C
Coating Temp
1700W
Total Power
Specifications
- Laminating width
- 680 mm
- Core width
- 680 mm
- Film types
- Stamping paper · B-film · cold sheet
- Laminating thickness
- 0.1–3 mm
- Speed
- 10 m/min (infinitely adjustable)
- Film coating temp.
- Under 100 °C
- Heating mode
- Roller with built-in heating core
- Power
- 220 V · 1700 W
- Dimensions · Weight
- 1165×1050×990 mm · 150 kg
- Packing size
- 1240×1140×1180 mm · 200 kg
Highlights
- Automatic Film Tearing
- Automatic Laminating
- Automatic Film Rolling
- One-Click Operation
- Direct Foil Stamping. No Plates
- Built-In Roller Heating
- Integrated One-Pass Process
- Eco-Friendly · Low Carbon
Options & bundles
Head configuration, powder handling and consumables can be bundled to suit your volume. Tell us your workload and we'll configure the right IM-Laminator.
Enquire on WhatsAppEngineered detail
Temperature Control Panel
Dual Heating Controllers
Laminating Rollers
Foil & Film Feed
Applications
What you can produce.
