Footprint 1219×1070×1327 mmUV Series
IM-U4050UV Flatbed Printer
A compact UV flatbed for rigid and hard media. Instant UV curing, high‑accuracy imaging and low‑VOC, eco‑friendly running on a 400×500 mm bed.
2
Print Heads
400×500mm
Print Bed
60mm
Object Height
4min
A4 Print
Specifications
- Ink type
- UV Ink
- Print heads
- 2 × i3200-U1 / i1600-U1 / XP600
- Print bed
- 400×500 mm
- Object height
- Up to 60 mm
- Print speed
- A4 / 4 min (i3200-U1)
- Print media
- Rigid / hard materials
- Ink supply
- Siphon feed
- RIP software
- Maintop · PP · RIIN · Cadlink
- Interface
- Gigabit Network
- Power
- 220 V · 750 W
- Dimensions · Weight
- 1219×1070×1327 mm · 150 kg
Industries
- Digital & Signage
- Packaging & Boxes
- Leather Goods
- Craft & Décor
- Ceramics & Glass
- Metal & Wood
Options & bundles
Head configuration, powder handling and consumables can be bundled to suit your volume. Tell us your workload and we'll configure the right IM-U4050.
Enquire on WhatsAppEngineered detail
Ink Cartridge System

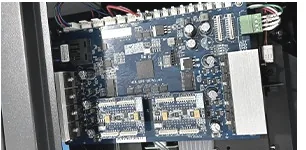

Motion Control Board
Linear Guide Rail
Ink-Stack Station
Applications
What you can produce.
Phone Cases
Packaging
Leather
Craft & Decor
Ceramics
Metal & WoodMore in UV
